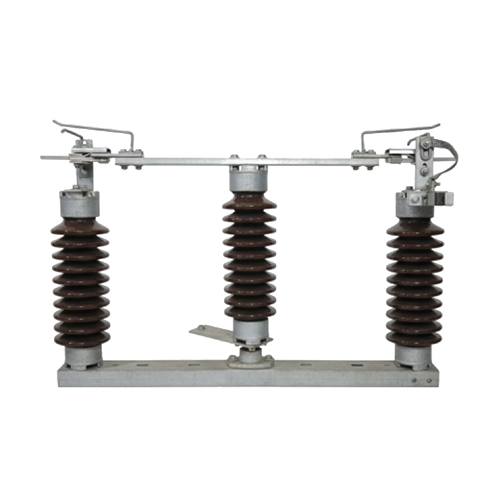

33 KV Porcelain Isolator

Get a Price/Quote

MOQ : 10 Units

33 KV Porcelain Isolator Specification

Temperature Range
-40C to +60C

Number of Module
Single/Triple

Automation Grade
Manual

Finish Type
Glazed Porcelain Finish

Protection Level
Outdoor/Weatherproof

Rated Voltage
33,000 V

Response Time
Instantaneous

Mechanical Life
10,000 operations

Circuit Type
AC

Max. Current
800 A

Product Type
Porcelain Isolator

Material
High-grade Porcelain

Insulation Resistance
>10,000 M

Contact Resistance
<20

Max. Voltage
33 kV

Operating Temperature
-40C to +60C

Size
Standard as per IEC 60129

Color
Brown/White Glazed

Weight
Approx. 15-30 kg

Mounting Type
Horizontal/Vertical

Current Rating
400-800 A

No Of Poles
1, 2 or 3

Mounting Hardware
Galvanized Steel

Dry Power Frequency Withstand Voltage
70 kV

Terminal Connector Type
Copper/Aluminium Stud Type

Creepage Distance
900 mm minimum

Corrosion Resistance
High

Resistance to Pollution
High

Maintenance
Low

Dielectric Strength
Excellent

Application
Outdoor Substation and Transmission Line

Wet Power Frequency Withstand Voltage
45 kV

Lightning Impulse Withstand Voltage
170 kVp

33 KV Porcelain Isolator Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 33 KV Porcelain Isolator

Seize the deal on our 33 KV Porcelain Isolator-now available at competitive pricing with limited stock! Trusted by first-string manufacturers and suppliers in India, this isolator features an unassailable design, ensuring flawless outdoor substation and transmission line operations. Crafted from high-grade porcelain, it boasts perfect resistance to pollution and corrosion, with exceptional dielectric strength, minimal maintenance, and unyielding weatherproof protection. Galvanized steel mounting and reliable copper/aluminium stud connectors add durability. Its performance is second-to-none, delivering operational excellence for all high-voltage needs.

Optimized for Outdoor Substation & Transmission Line Excellence

The 33 KV Porcelain Isolator is purpose-built for robust outdoor substation and transmission line usage. Designed for AC circuits, its high-grade porcelain construction ensures superior insulation, perfect resistance to contaminants, and enduring dielectric strength. This isolator supports both horizontal and vertical mounting, making it ideal for diverse use types and installation scenarios. Its glazed finish and high pollution resistance make it a fitting choice for challenging environments, delivering unassailable performance and reliability.

Packaging, Delivery, and Sample Policy Details

Our 33 KV Porcelain Isolators are packaged meticulously to preserve their first-string quality during transit. Delivery is executed swiftly, with the estimate provided upon receipt of your proposal amount and order details. We offer exchange support and flexible sample policies to address client requirements prior to bulk orders. Our committed dispatch process ensures you receive your isolators promptly, minimizing waiting times and maximizing installation efficiency.

FAQ's of 33 KV Porcelain Isolator:

Q: How is the 33 KV Porcelain Isolator installed in substation or transmission line settings?

A: The isolator can be mounted horizontally or vertically using supplied galvanized steel hardware. It is compatible with both single and triple module configurations to suit various application requirements in substations and transmission lines.

Q: What distinguishes the 33 KV Porcelain Isolator in terms of material and durability?

A: This isolator is constructed from high-grade, glazed porcelain offering excellent dielectric strength, high insulation resistance (>10,000 M), and robust corrosion and pollution resistance, making it ideal for outdoor and harsh environments.

Q: When is delivery of the 33 KV Porcelain Isolator typically completed after order placement?

A: Delivery times are estimated and communicated after you submit your proposal amount and order specifications. Our efficient process ensures the isolators reach you swiftly, depending on your location and quantity required.

Q: Where can this isolator be effectively used and with what circuit configurations?

A: It's designed for outdoor substation and transmission line usage, suitable for AC circuits. It accommodates a current rating of 400-800 A and is compatible with single or triple module setups for versatile deployment.

Q: What are the key benefits of choosing the 33 KV Porcelain Isolator?

A: Key advantages include high mechanical life (up to 10,000 operations), low maintenance, high pollution and corrosion resistance, and exceptional weatherproof protection, ensuring long-lasting, reliable performance in demanding electrical installations.

Q: How does the sample policy or exchange process work for bulk orders?

A: Sample requests can be addressed prior to finalizing bulk orders, and we provide exchange support if any issues arise. Contact us with your requirements to discuss your sample or exchange needs in detail.
